| Product Name: | SA-YQ30 Hydraulic Puller for Overhead Line Transmission Project | Maximum linepull (kN): | 30 |
|---|---|---|---|
| Continuous linepull (kN): | 25 | Maximum linespeed (km/h): | 5 |
| Bullwheel grooves number: | 7 | Bullwheel bottom of groove diameter(mm): | 300 |
| हाई लाइट: | hydraulic tensioner,conductor stringing equipment |
||

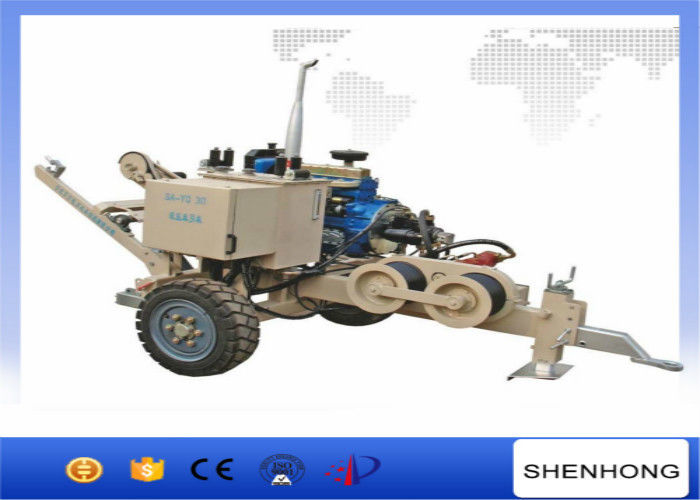

Diesel Engine Hydraulic Puller Tensioner SA-YQ30 25kN Continuous linepull
Essential parameter
| Maximum linepull (kN) | 30 |
| Continuous linepull (kN) | 25 |
| Maximum linespeed (km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ300 |
| Bullwheel grooves number | 7 |
| Maximum suitable steelrope diameter (mm) | Φ13 |
| Maximum through connector diameter (mm) | Φ40 |
| Engine power /speed (kW/rpm) | 31/2200 |
| Dimensions (mm) | 3200×1600×2000 |
| Weight (kg) | 1500 |
Feature :
1. Infinitely variable speed and line control ,the pull in the rope can be read on the line pull gauge .
2. The max pull for conductor –stringing operation can preset ,automatic overpull protection system .
3. Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .
4. Attached reel winder with automatically level wind .load and unload conveniently .
Main component :
1. Chinese famous diesel engine.
2. Main pump:SAUER –SUNDSTRAND pump .main motor : SAI techniques product .
3. Radiator:AKG
4. Hydraulic instrument:
5. Mating with model GSP950 drum
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
