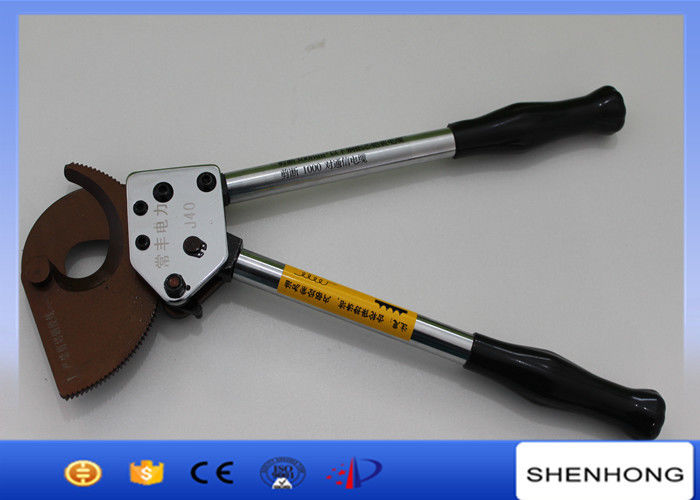

Cutting Tools J13 Ratchet Cable Cutter Used In Overhead Line Consruction

मैं अब ऑनलाइन चैट कर रहा हूँ
चीन SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD प्रमाणपत्र
चीन SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD प्रमाणपत्र
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

Cutting Tools J13 Ratchet Cable Cutter Used In Overhead Line Consruction

Cutting Tools J13 Ratchet Cable Cutter Used In Overhead Line Consruction
Cutting Tools J13 Ratchet Cable Cutter Used In Overhead Line Consruction Cutting Tools J13 Ratchet Cable Cutter Used In Overhead Line Consruction

बड़ी छवि :  Cutting Tools J13 Ratchet Cable Cutter Used In Overhead Line Consruction सबसे अच्छी कीमत

उत्पाद विवरण:
Place of Origin: Jiangsu, China
ब्रांड नाम: SHENHONG
प्रमाणन: ISO
Model Number: J40
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 2pcs
मूल्य: negotiation
Packaging Details: cartons
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per month
विस्तृत उत्पाद विवरण
Type: Ratchet cutter Size: 244*134*42 mm
Weight(kg): 1.15kg Cutting Range: ACSR≤720mm2,Prestressed steel wire≤300mm2
Usage: Cutting Application: Cutting steel wire
हाई लाइट:

wire installation tools

,

cable installation equipment

Cutting Tools J13 Ratchet Cable Cutter Used In Overhead Line Consruction





Application

For Cutting of prestressed steel wire.



Feature:

1. Cutting cu/al armored cable below diameter 300mm2

2. Blades can be resharpened or exchanged.

3. Ratchet structure saves labor

4. 30% labor save cause of handles special design

5. Packed with carrying bag.

6. Size: 244*134*42 mm

7. Weight: 1.15kg



Different Types of Cable Cutter

1 J13 Cutting Range ACSR≤720mm2,Prestressed steel wire≤150mm2
Weight 1.95kg
2 J30 Cutting Range ACSR≤630mm2,Prestressed steel wire≤100mm2
Weight 3.6kg
3 J25 Cutting Range ACSR≤800mm2,Prestressed steel wire≤150mm2
Weight 3.45kg
4 J50 Cutting Range ACSR≤1440mm2
Weight 3.2kg
5 J14 Cutting Range steel wire rope≤20mm
Weight 2kg
6 J25A Cutting Range steel wire rope≤30mm
Weight 3.55kg
7 J33 Cutting Range steel wire rope≤33mm
Weight 5.15kg
8 J40A Cutting Range Copper&Aluminum Cable ≤300mm2
Weight 1kg
9 J40B Cutting Range Copper&Aluminum Cable ≤240mm2
Weight 0.65kg
10 J40C Cutting Range

For Big blade,Copper&Aluminum Cable ≤300mm2;

For small blade,steel cable

Weight 1.1kg
11 J40D Cutting Range Copper&Aluminum Cable ≤300mm2
Weight 1.05kg
12 J40 Cutting Range

Copper&Aluminum Cable ≤300mm2;

1000 pairs coommunication cable

Weight 1.15kg
13 J52 Cutting Range Copper&Aluminum armoured cable≤500mm2
Weight 3.1kg
14 J75 Cutting Range

Copper&Aluminum armoured cable≤3×120mm2;

Copper&Aluminum armoured cable≤75mm;

3600 pairs coommunication cable

Weight 3.6kg
15 J95 Cutting Range

Copper&Aluminum armoured cable≤3×185mm2;

Copper&Aluminum armoured cable≤95mm

Weight 5kg
16 J100 Cutting Range

Copper&Aluminum armoured cable≤3×300mm2;

Copper&Aluminum armoured cable≤100mm

Weight 6.6kg
17 J130 Cutting Range Copper&Aluminum armoured cable≤130mm
Weight 8.3kg
18 J160 Cutting Range Copper&Aluminum armoured cable≤160mm
Weight 11.1kg



Cutting Tools J13 Ratchet Cable Cutter Used In Overhead Line Consruction 0

Cutting Tools J13 Ratchet Cable Cutter Used In Overhead Line Consruction 1
