उत्पाद का विवरण
Place of Origin: MADE IN CHINA
ब्रांड नाम: SHENGHONG
प्रमाणन: ISO
Model Number: SA-YZ7.5
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 1set
मूल्य: बातचीत योग्य
Packaging Details: 20GP container
Delivery Time: 40 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/month
Product Name: |
SA-YZ7.5 Winch Type Hydraulic Brake Tensioner for Stringing OPGW |
Max Tension(KN): |
7.5 |
Max Velocity(m/min): |
40 |
Diameter of Tension wheel(mm): |
1100 |
Overall Size(mm): |
2300*1250*1620 |
Weight(kg): |
450 |
Product Name: |
SA-YZ7.5 Winch Type Hydraulic Brake Tensioner for Stringing OPGW |
Max Tension(KN): |
7.5 |
Max Velocity(m/min): |
40 |
Diameter of Tension wheel(mm): |
1100 |
Overall Size(mm): |
2300*1250*1620 |
Weight(kg): |
450 |

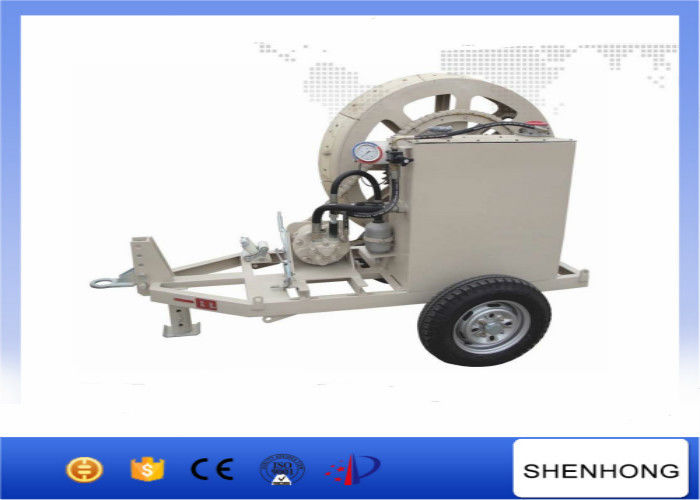

Winch Type Puller Tensioner / Brake Tensioner SA-YZ7.5 for Stringing OPGW
Essential parameter
| Model Type | SA-YZ7.5 |
| Overall Size(mm) | 2300*1250*1620 |
| Weight(kg) | 450 |
| Max Tension(KN) | 7.5 |
| Rated Tension(KN) | 5 |
| Max Velocity(m/min) | 40 |
| Diameter of Tension wheel(mm) | Φ1100 |
| Applicable Conductor Wire | ≤ LJ-240 |
| ≤ LJ-185/10 | |
| Suitable Hydraulic Oil Type | No.46 Antiwear Hydraulic Oil |
| Max Oil Temperature(°C) | 70 |
| Rated Working Pressure(MPa) | 25 |
Uses
It is used for stringing various conductors and earth wires.
·Feature :
1. Adopt retarding with hydraulic pressure.
2. Light and convenient for line construction in mountainous area.
